2SC2383-Y - NPN Transistor

This page provides the datasheet information for the 2SC2383-Y, a member of the 2SC2383-R NPN Transistor family.

Datasheet Summary

Features

Halogen free available upon request by adding suffix "-HF" Capable of 0.9Watts of Power Dissipation. Collector-current 1.0A Collector-base Voltage 160V Operating and storage junction temperature range: -55OC to +150 OC Marking: C2383 Epoxy meets UL 94 V-0 flammability rating Moisture Sensitivity Level 1 Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information) Electri.

Datasheet Details

Part number	2SC2383-Y
Manufacturer	MCC
File Size	265.90 KB
Description	NPN Transistor
Datasheet	2SC2383-Y Datasheet

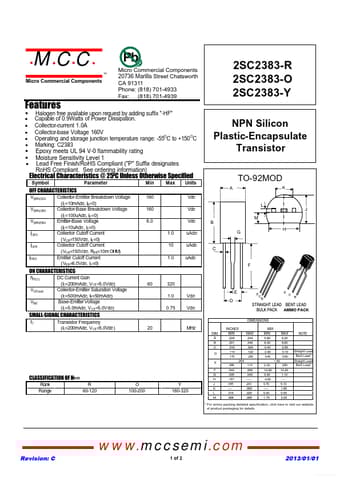

Additional preview pages of the 2SC2383-Y datasheet.

📁 Similar Datasheet

2SC2383 - TRANSISTOR (Toshiba Semiconductor)

2SC2383 - NPN Transistor (INCHANGE)

2SC2383 - NPN EPITAXIAL SILICON TRANSISTOR (Unisonic Technologies)

2SC2383T - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)

2SC2380 - Silicon NPN Transistor (Toshiba)

2SC2381 - Silicon NPN Transistor (Toshiba)

2SC2389 - (2SC2389 / 2SC2390) NPN Silicon Transistor (Rohm)

2SC2389S - High-voltage Amplifier Transistor (Rohm)

2SC2304 - NPN Transistor (INCHANGE)

2SC2304 - SILICON POWER TRANSISTOR (SavantIC)

Full PDF Text Transcription

Click to expand full text

MCC TM Micro Commercial Components omponents 20736 Marilla Street Chatsworth !"# $ % !"# 2SC2383-R 2SC2383-O 2SC2383-Y NPN Silicon Plastic-Encapsulate Transistor TO-92MOD A L B G C F M H K Features • • • • • • • • • Halogen free available upon request by adding suffix "-HF" Capable of 0.9Watts of Power Dissipation. Collector-current 1.0A Collector-base Voltage 160V Operating and storage junction temperature range: -55OC to +150 OC Marking: C2383 Epoxy meets UL 94 V-0 flammability rating Moisture Sensitivity Level 1 Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant.
