2SC2380 - Silicon NPN Transistor

Datasheet Summary

Features

  • . Output Power : P =12W(Min. ) (f=470MHz, V C C=12.6V, Pi=3W) . 100% Tested for Load Mismatch Stress at All Phase Angles with 30:1 VSWR @ V C c=12.6V, Pi=3W, f=470MHz Unit in mm.

📥 Download Datasheet

Datasheet preview – 2SC2380

Datasheet Details

Part number 2SC2380
Manufacturer Toshiba
File Size 65.39 KB
Description Silicon NPN Transistor
Datasheet download datasheet 2SC2380 Datasheet
Additional preview pages of the 2SC2380 datasheet.

📁 Similar Datasheet

  • 2SC2383 - TRANSISTOR (Toshiba Semiconductor)
  • 2SC2383 - NPN Transistor (INCHANGE)
  • 2SC2383 - NPN EPITAXIAL SILICON TRANSISTOR (Unisonic Technologies)
  • 2SC2383-O - NPN Transistor (MCC)
  • 2SC2383-R - NPN Transistor (MCC)
  • 2SC2383-Y - NPN Transistor (MCC)
  • 2SC2383T - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC2389 - (2SC2389 / 2SC2390) NPN Silicon Transistor (Rohm)
  • 2SC2389S - High-voltage Amplifier Transistor (Rohm)
  • 2SC2304 - NPN Transistor (INCHANGE)
Other Datasheets by Toshiba

Full PDF Text Transcription

Click to expand full text

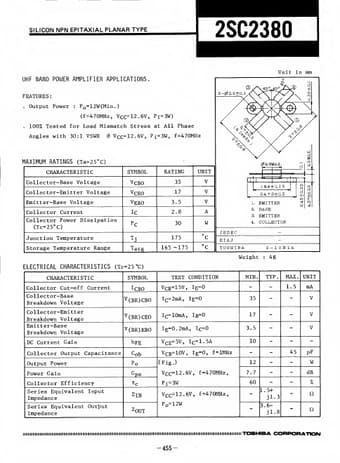

SILICON NPN EPITAXIAL PLANAR TYPE 2SC2380 UHF BAND POWER AMPLIFIER APPLICATIONS. FEATURES . Output Power : P =12W(Min.) (f=470MHz, V C C=12.6V, Pi=3W) . 100% Tested for Load Mismatch Stress at All Phase Angles with 30:1 VSWR @ V C c=12.6V, Pi=3W, f=470MHz Unit in mm MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC SYMBOL RATING UNIT Collector-Base Voltage VCBO 35 Collector-Emitter Voltage v CE0 17 Emitter-Base Voltage VEBO 3.5 Collector Current IC 2.8 Collector Power Dissipation 30 (Tc=25°C) 1. EMITTER 2. BASE 3. EMITTER 4.
