2SC2347 - Silicon NPN Transistor

📥 Download Datasheet

Datasheet preview – 2SC2347

Datasheet Details

Part number 2SC2347
Manufacturer Toshiba Semiconductor
File Size 140.98 KB
Description Silicon NPN Transistor
Datasheet download datasheet 2SC2347 Datasheet
Additional preview pages of the 2SC2347 datasheet.

📁 Similar Datasheet

  • 2SC2344 - PNP/NPN Transistors (Sanyo Semicon Device)
  • 2SC2344 - NPN Transistor (INCHANGE)
  • 2SC2344 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC2344 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC2348 - Silicon NPN Transistor (Toshiba)
  • 2SC2304 - NPN Transistor (INCHANGE)
  • 2SC2304 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC2305 - NPN Transistor (INCHANGE)
  • 2SC2305 - Silicon NPN Power Transistors (Philips)
  • 2SC2305 - SILICON POWER TRANSISTOR (SavantIC)
Other Datasheets by Toshiba Semiconductor

Full PDF Text Transcription

Click to expand full text

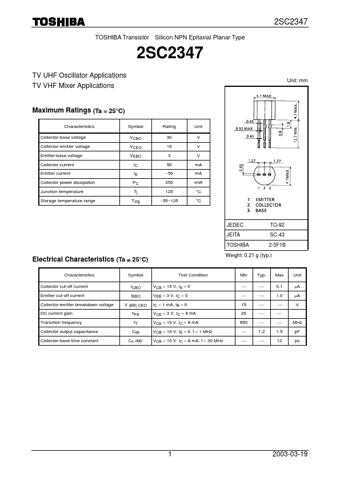

TOSHIBA Transistor Silicon NPN Epitaxial Planar Type 2SC2347 TV UHF Oscillator Applications TV VHF Mixer Applications 2SC2347 Unit: mm Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Emitter current Collector power dissipation Junction temperature Storage temperature range Symbol VCBO VCEO VEBO IC IE PC Tj Tstg Rating 30 15 3 50 -50 250 125 -55~125 Unit V V V mA mA mW °C °C Electrical Characteristics (Ta = 25°C) JEDEC TO-92 JEITA SC-43 TOSHIBA 2-5F1B Weight: 0.21 g (typ.
