2SC3421 Silicon NPN transistor

BLUE ROCKET ELECTRONICS

Description

2SC3421 Rev.E Mar.-2016 DATA SHEET / .
TO-126F NPN 。Silicon NPN transistor in a TO-126F Plastic Package.

📥 Download Datasheet

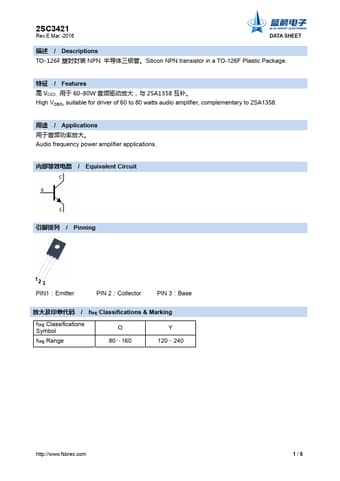

2SC3421 Datasheet Preview — Preview of 2SC3421 PDF

Datasheet Specifications

Part number: 2SC3421
Manufacturer: BLUE ROCKET ELECTRONICS
File Size: 0.98 MB
Datasheet: 2SC3421-BLUEROCKETELECTRONICS.pdf
Description: Silicon NPN transistor

Applications

* 。 Audio frequency power amplifier applications. / Equivalent Circuit / Pinning 12 3 PIN1：Emitter PIN 2：Collector PIN 3：Base / hFE Classifications & Marking hFE Classifications Symbol hFE Range O 80～160 Y 120～240 http://www. fsbrec. com 1/6 2SC3421 Rev. E Mar. -2016 / Absolute Maximum R
