SF-1206HV10M-2, High Voltage & High Current Multilayer Surface Mount Fuses

* *RoH *S * *CHOAM&LPOLGIAENNTFREE V SinglFuse™ SF-1206HV-M Series .

datasheet Preview Page 1 from Datasheet4u.com

SF-1206HV10M-2-BOURNS.pdf

SF-1206HV10M-2 Datasheet Preview — Preview of SF-1206HV10M-2 PDF

Datasheet Details

Part number:

SF-1206HV10M-2

Manufacturer:

BOURNS

File Size:

253.35 KB

Description:

High Voltage & High Current Multilayer Surface Mount Fuses

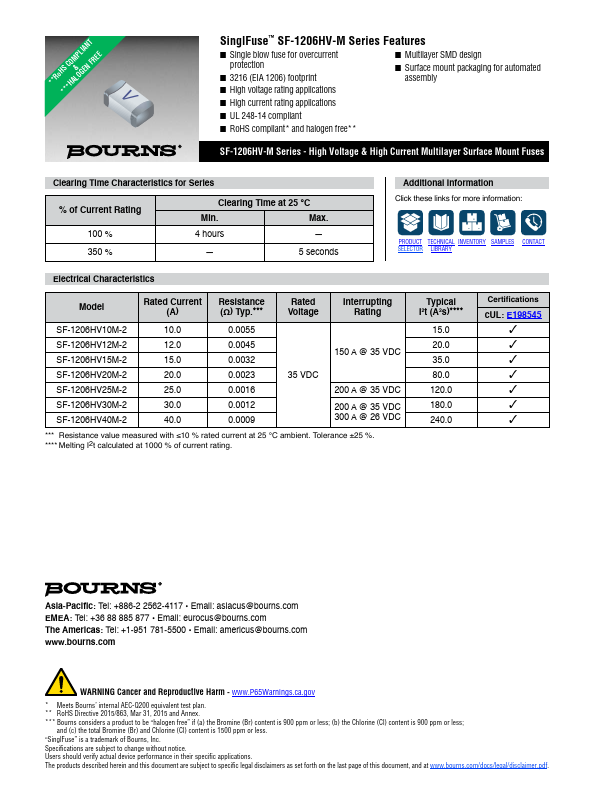

Features

* Single blow fuse for overcurrent protection
* 3216 (EIA 1206) footprint
* Multilayer SMD design
* Surface mount packaging for automated assembly

Applications

* High current rating applications
* UL 248-14 compliant
* RoHS compliant
* and halogen free

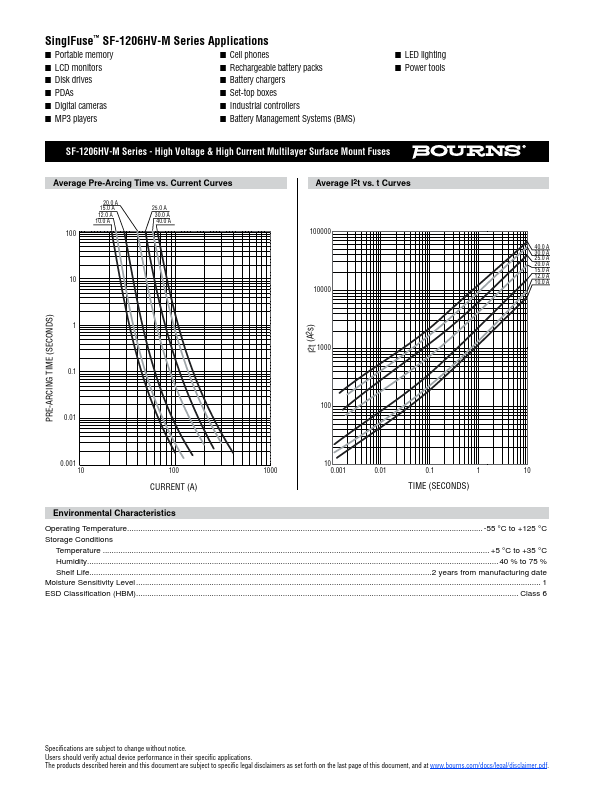

* SF-1206HV-M Series - High Voltage & High Current Multilayer Surface Mount Fuses Clearing Time Characteristics for Series % of Current Rating 100 % Clearing Time at 25 °C Min.
