Part number:
SF-1206HV12M-2
Manufacturer:
BOURNS
File Size:
253.35 KB
Description:

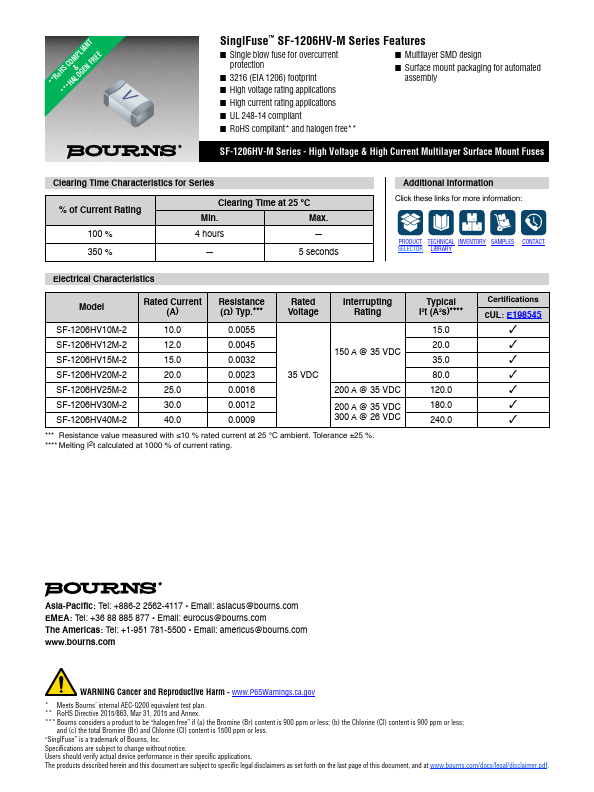

High voltage & high current multilayer surface mount fuses.
SF-1206HV12M-2 Datasheet (253.35 KB)
* Single blow fuse for overcurrent protection
* 3216 (EIA 1206) footprint
* Multilayer SMD design
* Surface mount packaging for automated assembly
* High voltage rating applications
* High current rating applications
* UL 248-14 compliant
* RoHS compliant
* a
SF-1206HV12M-2 Datasheet (253.35 KB)
SF-1206HV12M-2
BOURNS
253.35 KB
High voltage & high current multilayer surface mount fuses.
