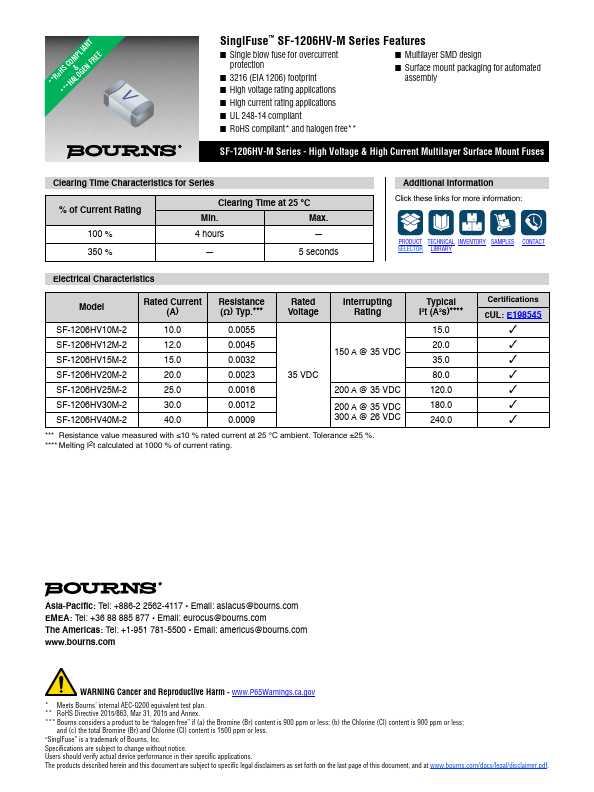

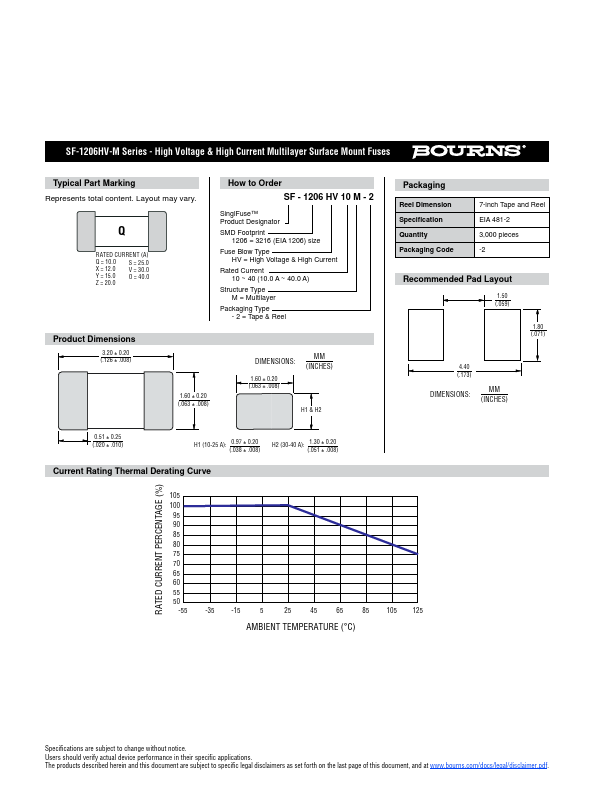

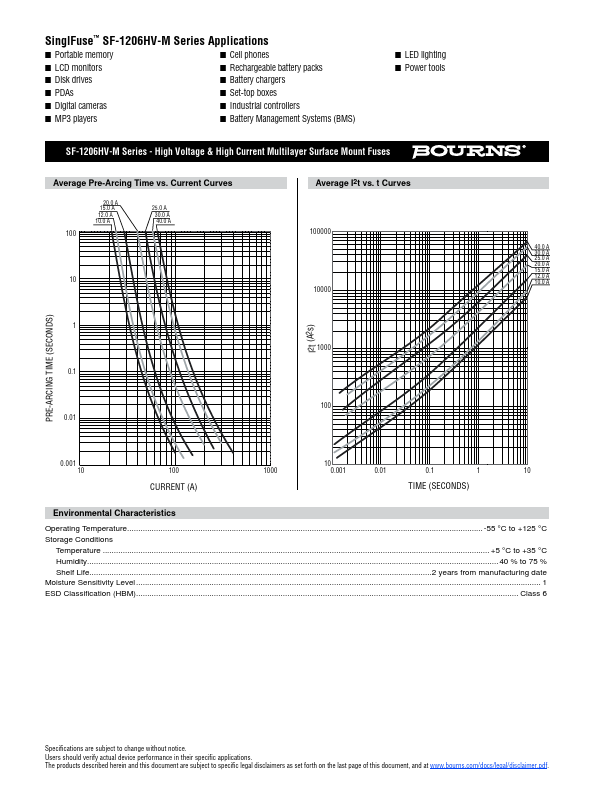

SF-1206HV25M-2, SF-1206HV10M-2 - High Voltage & High Current Multilayer Surface Mount Fuses

BOURNS

Datasheet Details

Part number	SF-1206HV25M-2, SF-1206HV10M-2
Manufacturer	BOURNS
File Size	253.35 KB
Description	High Voltage & High Current Multilayer Surface Mount Fuses
Datasheet	SF-1206HV10M-2-BOURNS.pdf
Note	This datasheet PDF includes multiple part numbers: SF-1206HV25M-2, SF-1206HV10M-2. Please refer to the document for exact specifications by model.
