SF-1206HV40M-2, SF-1206HV10M-2 High Voltage & High Current Multilayer Surface Mount Fuses

BOURNS

Description

* *RoH *S * *CHOAM&LPOLGIAENNTFREE V SinglFuse™ SF-1206HV-M Series .

📥 Download Datasheet

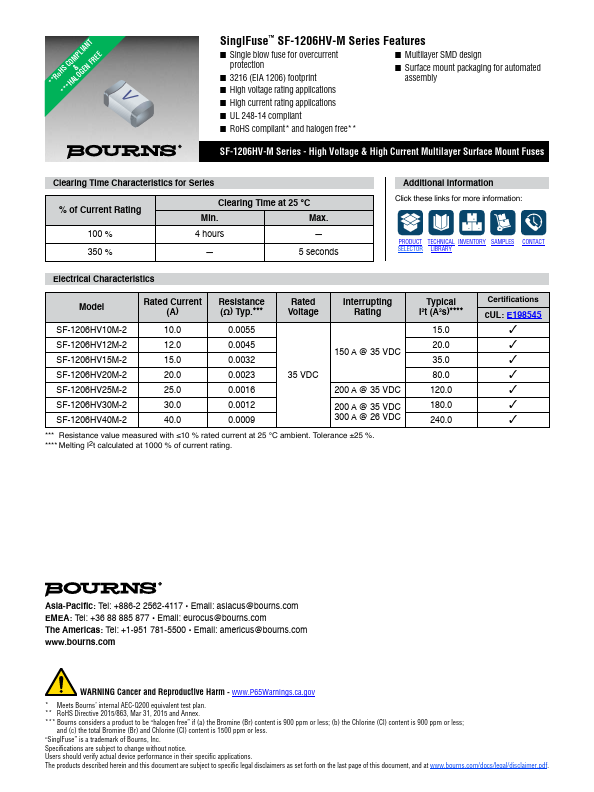

SF-1206HV40M-2 Datasheet Preview — This datasheet PDF includes multiple part numbers: SF-1206HV40M-2, SF-1206HV10M-2. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SF-1206HV40M-2, SF-1206HV10M-2
Manufacturer: BOURNS
File Size: 253.35 KB
Datasheet: SF-1206HV10M-2-BOURNS.pdf
Description: High Voltage & High Current Multilayer Surface Mount Fuses
Note: This datasheet PDF includes multiple part numbers: SF-1206HV40M-2, SF-1206HV10M-2.
Please refer to the document for exact specifications by model.

Features

* Single blow fuse for overcurrent protection
* 3216 (EIA 1206) footprint
* Multilayer SMD design
* Surface mount packaging for automated assembly

Applications

* High current rating applications
* UL 248-14 compliant
* RoHS compliant
* and halogen free
* SF-1206HV-M Series - High Voltage & High Current Multilayer Surface Mount Fuses Clearing Time Characteristics for Series % of Current Rating 100 % Clearing Time at 25 °C Min.
