BCT4222C - High-Speed DPDT Analog Switch

📥 Download Datasheet

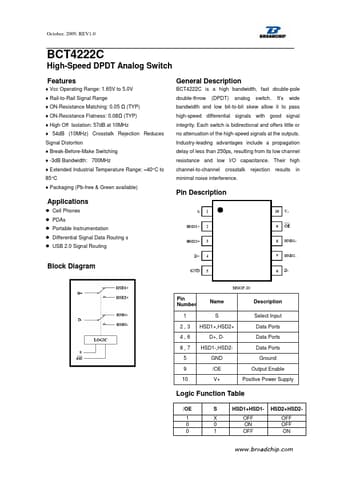

BCT4222C Datasheet Preview — Preview of BCT4222C PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BCT4222C
Manufacturer	BROADCHIP
File Size	437.40 KB
Description	High-Speed DPDT Analog Switch
Datasheet	BCT4222C-BROADCHIP.pdf

BCT4222C Product details

Description

BCT4222C is a high bandwidth, fast double-pole double-throw (DPDT) analog switch.

Features

Vcc Operating Range: 1.65V to 5.0V.
Rail-to-Rail Signal Range.
ON-Resistance Matching: 0.05 Ω (TYP).
ON-Resistance Flatness: 0.08Ω (TYP).
High Off Isolation: 57dB at 10MHz.
54dB (10MHz) Crosstalk Rejection Reduces Signal Distortion.
Break-Before-Make Switching.
-3dB Bandwidth: 700MHz.
Extended Industrial Temperature Range:.
40°C to 85°C.
Packaging (Pb-free & Green available).
