BCT5-S18-UN6X2T-H1151

Capacitive sensor

BCT5-S18-UN6X2T-H1151 General Description

Distance D Distance W Distance S Distance G Diameter of the active area B minimum distances 36 mm 15 mm 27 mm 30 mm Ø 18 mm The given minimum distances have been checked against the standard switching distance. Should the sensitivity of the sensors be changed via potentiometer, the data sheet spec.

BCT5-S18-UN6X2T-H1151 Datasheet (351.07 KB)

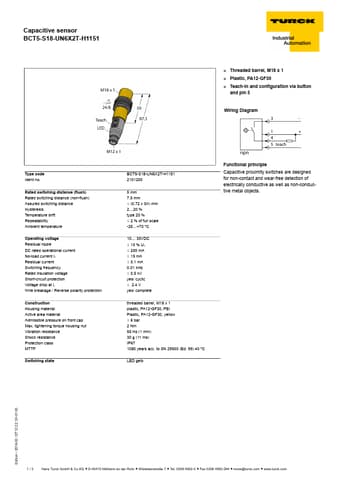

BCT5-S18-UN6X2T-H1151 Datasheet Preview — Preview of BCT5-S18-UN6X2T-H1151 PDF

Datasheet Details

Part number:

BCT5-S18-UN6X2T-H1151

Manufacturer:

Turck

File Size:

351.07 KB

Description:

Capacitive sensor.
Capacitive sensor BCT5-S18-UN6X2T-H1151
* Threaded barrel, M18 x 1
* Plastic, PA12-GF30
* Teach-in and configuration via button and pin 5.
