BCT5302 - Ceramic Heat Controller

Product Overview

📥 Download Datasheet

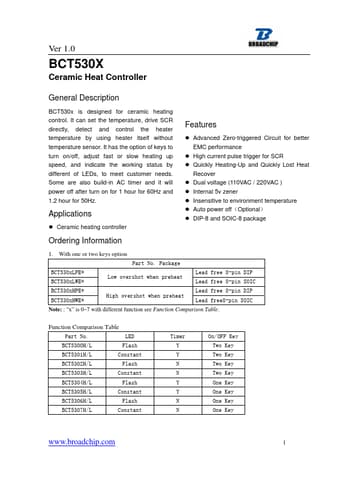

BCT5302 Ceramic Heat Controller by BROADCHIP - Datasheet Preview — Datasheet preview – BCT5302

Datasheet Details

Part number	BCT5302
Manufacturer	BROADCHIP
File Size	276.62 KB
Description	Ceramic Heat Controller
Datasheet	BCT5302 Datasheet
Note	This datasheet PDF includes multiple part numbers: BCT5302, BCT5300. Please refer to the document for exact specifications by model.
Additional preview pages of the BCT5302 datasheet.

Product details

Description

BCT530x is designed for ceramic heating control.

Features

z Advanced Zero-triggered Circuit for better EMC performance z High current pulse trigger for SCR z Quickly Heating-Up and Quickly Lost Heat Recover z Dual voltage (110VAC / 220VAC ) z Internal 5v zener z Insensitive to environment temperature z Auto power off（Optional） z DIP-8 and SOIC-8 package Ordering Information 1. With one or two keys option Part No. Package BCT530xLPE.
BCT530xLWE.
Low overshot when preheat.
