BCT10-S30-UP6X2-H1151 - Capacitive sensor
Distance D Distance W Distance S Distance G Diameter of the active area B minimum distances 60 mm 30 mm 45 mm 60 mm Ø 30 mm The given minimum distances have been checked against the standard switching distance. Should the sensitivity of the sensors be changed via potentiometer, the data sheet spec.

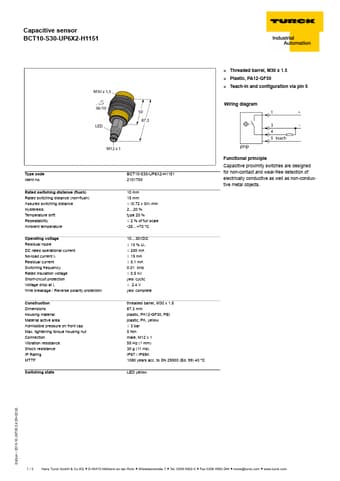

Capacitive sensor BCT10-S30-UP6X2-H1151 Threaded barrel, M30 x 1.5 Plastic, PA12-GF30 Teach-in and configuration via pin 5 Wiring diagram Type code Ident no. Rated switching distance (flush) Rated switching distance (non-flush) Assured switching distance Hysteresis Temperature drift Repeatability Ambient temperature Operating voltage Residual ripple DC rated operational current No-load current I0 Residual current Switching frequency Rated insulation voltage Short-circuit prot.
