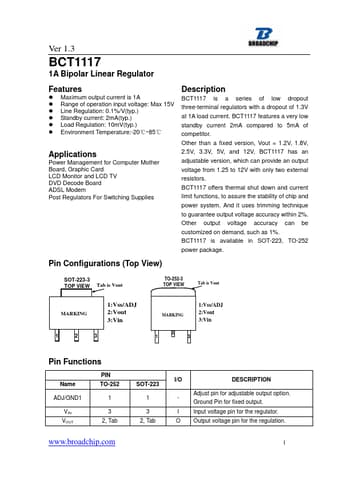

BCT1117 Datasheet, Regulator, BROADCHIP

BCT1117 Features

• Regulator
• Maximum output current is 1A
• Range of operation input voltage: Max 15V
• Line Regulation: 0.1%/V(typ.)
• Standby current: 2mA(typ.)
• Load Re

PDF File Details

Part number:

BCT1117

Manufacturer:

BROADCHIP

File Size:

440.93kb

Download:

📄 Datasheet

Description:

1a bipolar linear regulator. BCT1117 is a series of low dropout three-terminal regulators with a dropout of 1.3V at 1A load current. BCT1117 features a very low s

BCT1117 Application

• Applications Power Management for Computer Mother Board, Graphic Card LCD Monitor and LCD TV DVD Decode Board ADSL Modem Post Regulators For Switchi
