BCT2232 Datasheet, Amps, BROADCHIP

BCT2232 Features

  • Amps _ 30mA Output Drive Capability _ Rail-to-Rail Input and Output _ 1.1mA Supply Current per Amplifier _ 2.7V to 5.5V Single-Supply Operation _ 10MHz Gain-Bandwidth Product _ High Slew Ra

PDF File Details

Part number:

BCT2232

Manufacturer:

BROADCHIP

File Size:

264.09kb

Download:

📄 Datasheet

Description:

Rail-to-rail i/o op amps. The BCT2232 dual, high-output drive CMOS op amps feature 200mA of peak output current, rail-to-rail input, and output capability from

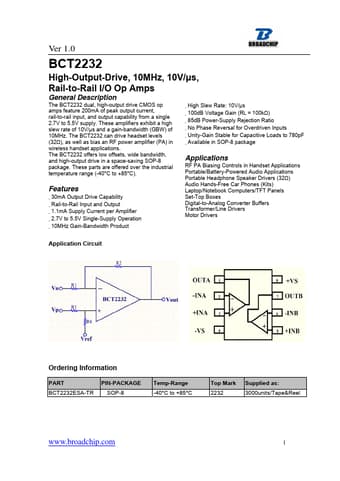

Datasheet Preview: BCT2232 📥 Download PDF (264.09kb)
Page 2 of BCT2232 Page 3 of BCT2232

BCT2232 Application

  • Applications The BCT2232 offers low offsets, wide bandwidth, and high-output drive in a space-saving SOP-8 package. These parts are offered over th
