BCT72328S Datasheet - BlueChips

BCT72328S LED Display Driver and Key Scan

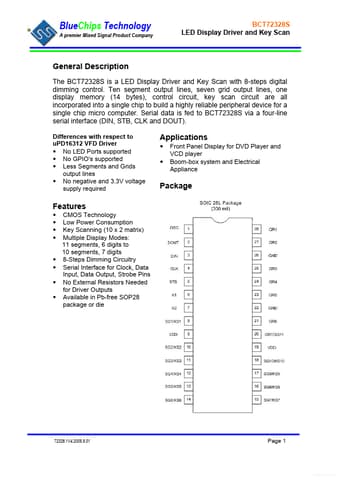

The BCT72328S is a LED Display Driver and Key Scan with 8-steps digital dimming control. Ten segment output lines, seven grid output lines, one display memory (14 bytes), control circuit, key scan circuit are all incorporated into a single chip to build a highly reliable peripheral device for a sing.

BCT72328S Features

* CMOS Technology Low Power Consumption Key Scanning (10 x 2 matrix) Multiple Display Modes: 11 segments, 6 digits to 10 segments, 7 digits 8-Steps Dimming Circuitry Serial Interface for Clock, Data Input, Data Output, Str
