BCT1117B Datasheet, regulator equivalent, BROADCHIP

BCT1117B Features

  • Regulator
  • Maximum output current is 0.8A
  • Range of operation input voltage: Max 15V
  • Line Regulation: 0.1%/V(typ.)
  • Standby current: 2mA(typ.)
  • Load

PDF File Details

Part number:

BCT1117B

Manufacturer:

BROADCHIP

File Size:

576.07kb

Download:

📄 Datasheet

Description:

0.8a bipolar linear regulator. BCT1117B is a series of low dropout three-terminal regulators with a dropout of 1.3V at 0.8A load current. BCT1117B features a very l

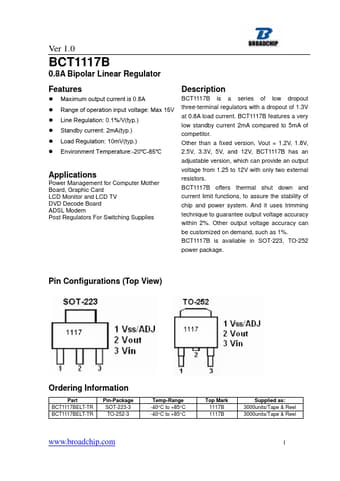

Datasheet Preview: BCT1117B 📥 Download PDF (576.07kb)
Page 2 of BCT1117B Page 3 of BCT1117B

BCT1117B Application

  • Applications Power Management for Computer Mother Board, Graphic Card LCD Monitor and LCD TV DVD Decode Board ADSL Modem Post Regulators For Switchi
