BCT5-S18-UP6X2T-H1151 Datasheet - Turck

BCT5-S18-UP6X2T-H1151 - Capacitive sensor

Distance D Distance W Distance S Distance G Diameter of the active area B minimum distances 36 mm 15 mm 27 mm 30 mm Ø 18 mm The given minimum distances have been checked against the standard switching distance. Should the sensitivity of the sensors be changed via potentiometer, the data sheet spec.
Capacitive sensor BCT5-S18-UP6X2T-H1151 Threaded barrel, M18 x 1 Plastic, PA12-GF30 Teach-in and configuration via button and pin 5 Wiring Diagram Type code Ident no. Rated switching distance (flush) Rated switching distance (non-flush) Assured switching distance Hysteresis Temperature drift Repeatability Ambient temperature Operating voltage Residual ripple DC rated operational current No-load current I0 Residual current Switching frequency Rated insulation voltage Short-cir.

BCT5-S18-UP6X2T-H1151-Turck.pdf

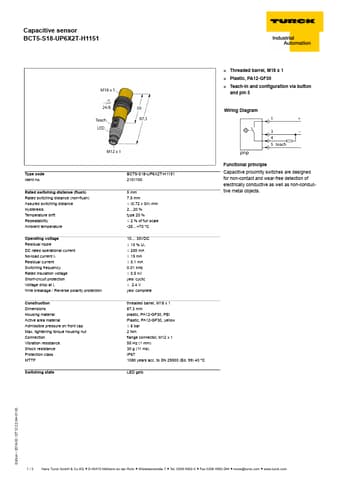

Preview of BCT5-S18-UP6X2T-H1151 PDF
BCT5-S18-UP6X2T-H1151 Datasheet Preview Page 2 BCT5-S18-UP6X2T-H1151 Datasheet Preview Page 3

Datasheet Details

Part number:

BCT5-S18-UP6X2T-H1151

Manufacturer:

Turck

File Size:

350.83 KB

Description:

Capacitive sensor.
