BCT5007 Datasheet - BROADCHIP

BCT5007-BROADCHIP.pdf

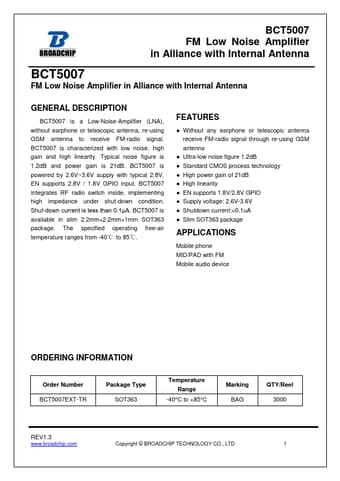

Preview of BCT5007 PDF
BCT5007 Datasheet Preview Page 2 BCT5007 Datasheet Preview Page 3

Datasheet Details

Part number:

BCT5007

Manufacturer:

BROADCHIP

File Size:

479.29 KB

Description:

Fm low noise amplifier.

BCT5007, FM Low Noise Amplifier

BCT5007 is a Low-Noise-Amplifier (LNA), without earphone or telescopic antenna, re-using GSM antenna to receive FM-radio signal.

BCT5007 is characterized with low noise, high gain and high linearity.

Typical noise figure is 1.2dB and power gain is 21dB.

BCT5007 is powered by 2.6V~3.6V supply with ty

BCT5007 Features

* Without any earphone or telescopic antenna receive FM-radio signal through re-using GSM antenna

* Ultra-low noise figure 1.2dB

* Standard CMOS process technology

* High power gain of 21dB

* High linearity
