BCT5300

Ceramic Heat Controller

BCT5300 Features

* z Advanced Zero-triggered Circuit for better EMC performance z High current pulse trigger for SCR z Quickly Heating-Up and Quickly Lost Heat Recover z Dual voltage (110VAC / 220VAC ) z Internal 5v zener z Insensitive to environment temperature z Auto power off(Optional) z DIP-8 and SOIC-8 package O

BCT5300 General Description

BCT530x is designed for ceramic heating control. It can set the temperature, drive SCR directly, detect and control the heater temperature by using heater itself without temperature sensor. It has the option of keys to turn on/off, adjust fast or slow heating up speed, and indicate the working stat.

BCT5300 Datasheet (276.62 KB)

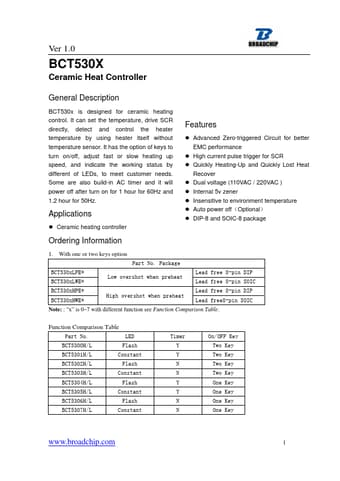

Preview of BCT5300 PDF
