BCT5306

Ceramic Heat Controller

BCT5306 Features

* z Advanced Zero-triggered Circuit for better EMC performance z High current pulse trigger for SCR z Quickly Heating-Up and Quickly Lost Heat Recover z Dual voltage (110VAC / 220VAC ) z Internal 5v zener z Insensitive to environment temperature z Auto power off(Optional) z DIP-8 and SOIC-8 package O

BCT5306 General Description

BCT530x is designed for ceramic heating control. It can set the temperature, drive SCR directly, detect and control the heater temperature by using heater itself without temperature sensor. It has the option of keys to turn on/off, adjust fast or slow heating up speed, and indicate the working stat.

BCT5306 Datasheet (276.62 KB)

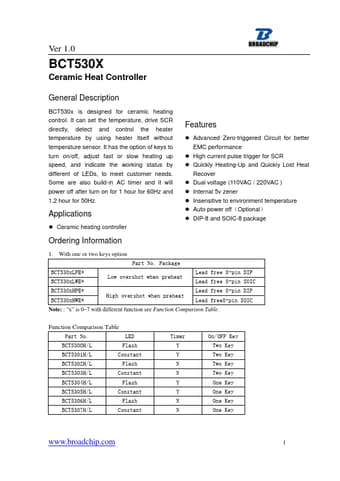

Preview of BCT5306 PDF

Datasheet Details

Part number:

BCT5306

Manufacturer:

BROADCHIP

File Size:

276.62 KB

Description:

Ceramic heat controller.
