BCT3220 Datasheet, Driver, BROADCHIP

BCT3220 Features

  • Driver
  • Drive Common Anode or Common Cathode LEDs
  • Low 50mV Dropout at 20mA
  • 20mA full scale current
  • <2% LED Current Matching (TYP)
  • One Wire inte

PDF File Details

Part number:

BCT3220

Manufacturer:

BROADCHIP

File Size:

202.41kb

Download:

📄 Datasheet

Description:

4 channel led driver. The BCT3220 is a high performance white LED driver. The BCT3220 uses an internal resistor to set the bias current for four LEDs, whic

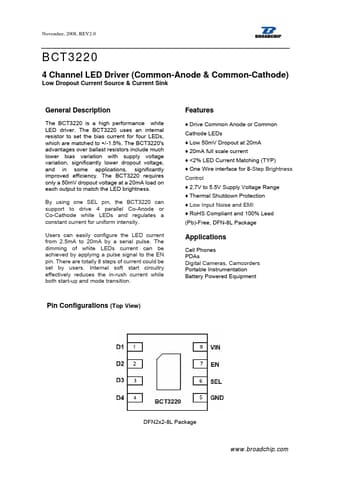

Datasheet Preview: BCT3220 📥 Download PDF (202.41kb)
Page 2 of BCT3220 Page 3 of BCT3220

BCT3220 Application

  • Applications significantly improved efficiency. The BCT3220 requires only a 50mV dropout voltage at a 20mA load on each output to match the LED bri
