BCT3221

4-Channel LED Driver

BCT3221 Features

* Drive Common Anode or Common Cathode LEDs

* Low 50mV Dropout at 20mA

* 20mA full scale current

BCT3221 General Description

The BCT3221 is a high performance white LED driver. The BCT3221 uses an internal resistor to set the bias current for four LEDs, which are matched to +/-1.5%. The BCT3221's advantages over ballast resistors include much lower bias variation with supply voltage variation, significantly lower dropout .

BCT3221 Datasheet (270.93 KB)

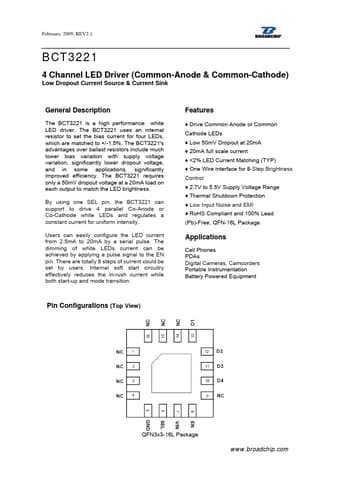

Preview of BCT3221 PDF

Datasheet Details

Part number:

BCT3221

Manufacturer:

BROADCHIP

File Size:

270.93 KB

Description:

4-channel led driver.
