BCT3228

8 Channel LED Driver

BCT3228 Features

* Drive Common Anode or Common Cathode LEDs

* Low 50mV Dropout at 20mA

* 20mA full scale current

* One Wire interface for 8-Step Brightness Control

* 2.7V to 5.5V Supply Voltage Range

* Thermal Shutdown Protection

* Low Input Noise and EMI

BCT3228 General Description

The BCT3228 is a high performance 8 channel white LED driver. The BCT3228 uses two internal resistor to set the bias current for four LEDs. The BCT3228's advantages over ballast resistors include much lower bias variation with supply voltage variation, significantly lower dropout voltage, and in som.

BCT3228 Datasheet (209.28 KB)

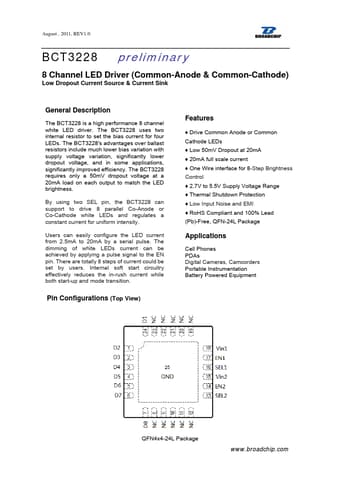

Preview of BCT3228 PDF

Datasheet Details

Part number:

BCT3228

Manufacturer:

BROADCHIP

File Size:

209.28 KB

Description:

8 channel led driver.
August , 2011, REV1.0 BCT3228 preliminary 8 Channel LED Driver (Common-Anode & Common-Cathode) Low Dropout Current Source & Current Sink General Desc.
