BCT3222 Datasheet, Driver, BROADCHIP

BCT3222 Features

• Driver
• Drive Common Anode or Common Cathode LEDs
• Low 50mV Dropout at 20mA
• 20mA full scale current
• <2% LED Current Matching (TYP)
• One Wire inte

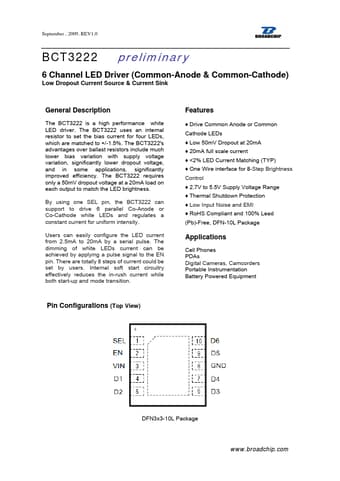

PDF File Details

Part number:

BCT3222

Manufacturer:

BROADCHIP

File Size:

191.67kb

Download:

📄 Datasheet

Description:

6 channel led driver. The BCT3222 is a high performance white LED driver. The BCT3222 uses an internal resistor to set the bias current for four LEDs, whic

BCT3222 Application

• Applications significantly improved efficiency. The BCT3222 requires only a 50mV dropout voltage at a 20mA load on each output to match the LED bri
