AFBR-S50MV85I - Time-of-Flight Sensor

AFBR-S50MV85I Description

AFBR-S50MV85I Time-of-Flight Sensor Module for Distance and Motion Measurement Data Sheet .
The Broadcom® AFBR-S50MV85I is a multi-pixel optical distance and motion measurement sensor module based on the optical Time-of-Flight principle.

AFBR-S50MV85I Features

* Very fast measurement rates of up to 3 kHz
* Operation up to 200 klx (kilolux)
* Multipixel for 3D motion detection
* Integrated calibrated clock source
* Accuracy error typically below ± 1.5%
* Unambiguous range up to 100m in 2f mode
* Reference pixel for system health

AFBR-S50MV85I Applications

* with the need for highest speed and accuracy at medium distance ranges, with small size and very low power consumption. Due to its ambient light suppression, use in outside environments is possible in sunlight. The sensor accurately measures against white, black, and colored surfaces as well as meta

📥 Download Datasheet

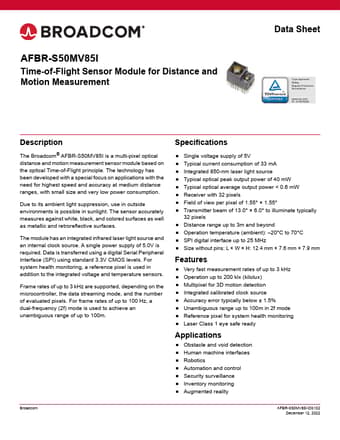

Preview of AFBR-S50MV85I PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AFBR-S50MV85I
Manufacturer
Broadcom
File Size
1.20 MB
Datasheet
AFBR-S50MV85I-Broadcom.pdf
Description
Time-of-Flight Sensor
