AFBR-S4N44C013

NUV-HD Single Silicon Photo Multiplier

AFBR-S4N44C013 Features

* High PDE of more than 55% at 420 nm

* Excellent SPTR and CRT

* Excellent uniformity of breakdown voltage, 180 mV (3 sigma)

* Excellent uniformity of gain

* With TSV technology (4-side tilable with high fill factors)

* Size 3.86 × 3.86 mm2

* Cell pitch 30 × 30 µm2

AFBR-S4N44C013 General Description

The Broadcom® AFBR-S4N44C013 is a silicon photo multiplier (SiPM) used for ultra-sensitive precision measurement of single photons.The active area is 3.72 × 3.72 mm2. High packing density of the single chip is achieved using through-silicon-via (TSV) technology and a chip sized package (CSP). Larger.

AFBR-S4N44C013 Datasheet (720.66 KB)

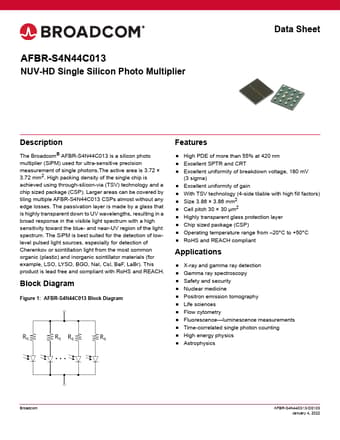

Preview of AFBR-S4N44C013 PDF

Datasheet Details

Part number:

AFBR-S4N44C013

Manufacturer:

Broadcom

File Size:

720.66 KB

Description:

Nuv-hd single silicon photo multiplier.
