AFBR-S4N33C013 NUV-HD Single Silicon Photo Multiplier

The Broadcom® AFBR-S4N33C013 is a single silicon photo multiplier (SiPM) used for ultra-sensitive precision measurement of single photons. The active area is 3.0 × 3.0 mm2. High packing density of the single chips is achieved using through-silicon-via (TSV) technology and a chip-sized package (CSP)..

AFBR-S4N33C013 Features

* High PDE of more than 54% at 420 nm

* Chip-sized package (CSP)

* Excellent SPTR and CRT

* Excellent uniformity of breakdown voltage, 180 mV (3 sigma)

* Excellent uniformity of gain

* With TSV technology (4-side tilable), with high fill factors

* Size 3.14 × 3.14 mm2

AFBR-S4N33C013-Broadcom.pdf

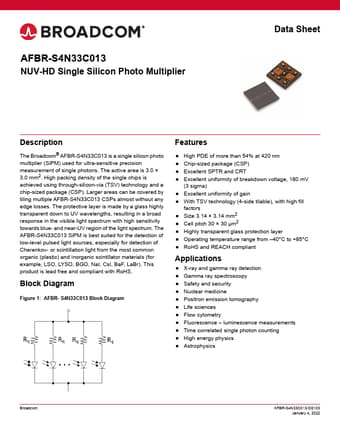

AFBR-S4N33C013 Datasheet Preview — Preview of AFBR-S4N33C013 PDF

Datasheet Details

Part number:

AFBR-S4N33C013

Manufacturer:

Broadcom

File Size:

785.11 KB

Description:

Nuv-hd single silicon photo multiplier.
