AFBR-S4N66P024M 2x1 NUV-MT Silicon Photomultiplier Array

The Broadcom® AFBR-S4N66P024M is a Silicon Photomultiplier (SiPM) array used for ultra-sensitive precision measurements of single photons. Two 6 mm × 6 mm SiPMs are arranged in a 2×1 element array with a pitch of 7 mm. Larger areas can be covered with a SiPM-pitch of 7 mm by tiling multiple AFBR-S4N.

AFBR-S4N66P024M Features

* 2×1 SiPM array

* Array size 13.54 mm × 6.54 mm

* High PDE (63% at 420 nm)

* Excellent SPTR and CRT

* Excellent uniformity of breakdown voltage

* Excellent uniformity of gain

* Four-side tilable, with high fill factors

* Cell pitch 40 µm

* Highly transparent epox

AFBR-S4N66P024M-Broadcom.pdf

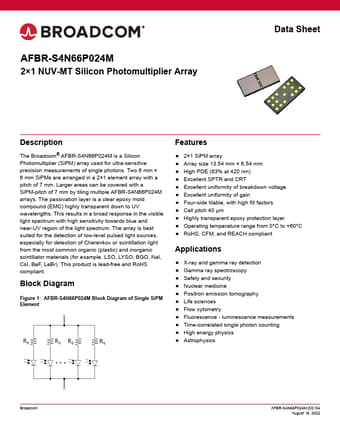

AFBR-S4N66P024M Datasheet Preview — Preview of AFBR-S4N66P024M PDF
