ISO508 is an 8-channel, isolated, digital coupler based on the Burr-Brown capacitive barrier technology.
The ISO508 has additional circuitry to ensure DC accuracy and overcome the edge-sensitive nature of normal capacitive devices even on power-up conditions.
The novel circuitry involved will restor
ISO508 Features
* q LOW POWER CONSUMPTION: < 12mW per Channel Typ. q 1500Vrms ISOLATION: 100% Tested by Partial Discharge q ASYNCHRONOUS OR SYNCHRONOUS OPERATION q DOUBLE BUFFERED DESIGN FOR EASY INTEGRATION INTO BUS-BASED SYSTEMS q TRI-STATE OUTPUTS q 24-PIN PDIP OR GULL WING PACKAGES q 2MWORDS/SEC TRANSFER RATE q 1

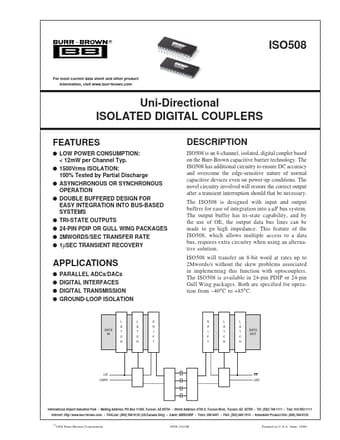

ISO508_Burr-BrownCorporation.pdf
Datasheet Details
ISO508, ISO508_Burr
Burr-Brown Corporation
187.44 KB
Uni-directional isolated digital couplers.
This datasheet PDF includes multiple part numbers: ISO508, ISO508_Burr.
Please refer to the document for exact specifications by model.
