2.5-A Isolated IGBT MOSFET Gate Driver

ISO5500 Features

* 1 2.5-A Maximum Peak Output Current

* Drives IGBTs up to IC = 150 A, VCE = 600 V

* Capacitive Isolated Fault Feedback

* CMOS/TTL Compatible Inputs

* 300-ns Maximum Propagation Delay

* Soft IGBT Turnoff

* Integrated Fail-Safe IGBT Protection

ISO5500 General Description

The ISO5500 is an isolated gate driver for IGBTs and MOSFETs with power ratings of up to IC = 150 A and VCE = 600 V. Input TTL logic and output power stage are separated by a capacitive, silicon dioxide (SiO2), isolation barrier. When used in conjunction with isolated power supplies, the device bloc.

ISO5500 Datasheet (2.12 MB)

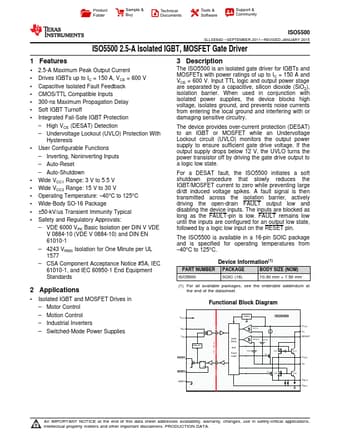

ISO5500 Datasheet Preview — Preview of ISO5500 PDF
