ISO5451 - MOSFET Gate Driver

ISO5451 Description

ISO5451 SLLSEO1D * JUNE 2015 * REVISED MAY 2023 ISO5451 High-CMTI 2.5-A and 5-A Isolated IGBT, MOSFET Gate Driver With Active Protecti.
The ISO5451 is a 5.

ISO5451 Features

* 1 Features
* 50-kV/μs Minimum and 100-kV/μs Typical Common-Mode Transient Immunity (CMTI) at VCM = 1500 V
* 2.5-A Peak Source and 5-A Peak Sink Currents
* Short Propagation Delay: 76 ns (Typ), 110 ns (Max)
* 2-A Active Miller Clamp
* Output Short-Circuit Clam

ISO5451 Applications

* Isolated IGBT and MOSFET Drives in:
* Industrial Motor Control Drives
* Industrial Power Supplies
* Solar Inverters
* HEV and EV Power Modules

📥 Download Datasheet

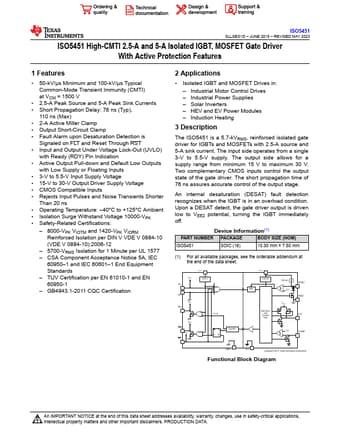

Preview of ISO5451 PDF
