ISO5851 Datasheet - Texas Instruments

ISO5851 High-CMTI 2.5-A and 5-A Isolated IGBT MOSFET Gate Driver

The ISO5851 is a 5.7-kVRMS, reinforced isolated gate driver for IGBTs and MOSFETs with 2.5-A source and 5-A sink current. The input side operates from a single 3-V to 5.5-V supply. The output side allows for a supply range from minimum 15 V to maximum 30 V. Two complementary CMOS inputs control the .

ISO5851 Features

* 1 Features

* 1 100-kV/μs Minimum Common-Mode Transient Immunity (CMTI) at VCM = 1500 V

* 2.5-A Peak Source and 5-A Peak Sink Currents

* Short Propagation Delay: 76 ns (Typ), 110 ns (Max)

* 2-A Active Miller Clamp

* Output Short-Circuit Clamp

* Fault Al

ISO5851 Datasheet (916.82 KB)

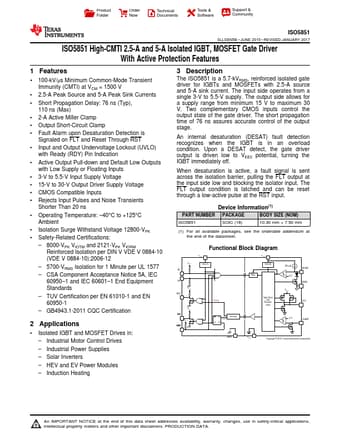

Preview of ISO5851 PDF
ISO5851 Datasheet Preview Page 2 ISO5851 Datasheet Preview Page 3

Datasheet Details

Part number:

ISO5851

Manufacturer:

Texas Instruments ↗

File Size:

916.82 KB

Description:

High-cmti 2.5-a and 5-a isolated igbt mosfet gate driver.
