ADS5231

Analog-to-Digital Converter

ADS5231 Features

* Single +3.3V Supply High SNR: 70.7dBFS at fIN = 5MHz Total Power Dissipation: Internal Reference: 321mW External Reference: 285mW Internal or External Reference Low DNL: ±0.3LSB Flexible Input Range: 1.5VPP to 2VPP TQFP-64 Package DESCRIPTION The ADS5231 is a dual, hig

ADS5231 General Description

The ADS5231 is a dual, high-speed, high dynamic range, 12-bit pipelined analog-to-digital converter (ADC). This converter includes a high-bandwidth sample-and-hold amplifier that gives excellent spurious performance up to and beyond the Nyquist rate. The differential nature of the sample-and-hold am.

ADS5231 Datasheet (596.16 KB)

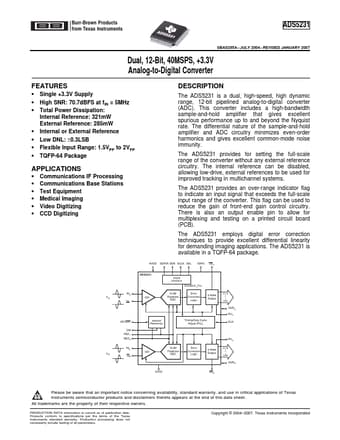

Preview of ADS5231 PDF

Datasheet Details

Part number:

ADS5231

Manufacturer:

Burr-Brown

File Size:

596.16 KB

Description:

Analog-to-digital converter.
www.DataSheet4U.com BurrĆBrown Products from Texas Instruments ADS5231 SBAS295A

* JULY 2004

* REVISED JANUARY 2007 Dual, 12-Bit, 40.
