ADS5270

8-Channel 12-Bit 40MSPS ADC

Burr-Brown Corporation

ADS5270 Features

* D D D D D D D D D D D D D D D D D D D Maximum Sample Rate: 40MSPS 12-Bit Resolution No Missing Codes Power Dissipation: 907mW CMOS Technology Simultaneous Sample-and-Hold 70.5dB SNR at 10MHz IF Internal and External References 3.3V Digital/Analog Supply Serialized LVDS Outputs Integrated Frame and S

ADS5270 General Description

The ADS5270 is a high-performance, 40MSPS, 8-channel, parallel analog-to-digital converter (ADC). Internal references are provided, simplifying system design requirements. Low power consumption allows for the highest of system integration densities. Serial LVDS (low-voltage differential signaling) o.

ADS5270 Datasheet (439.72 KB)

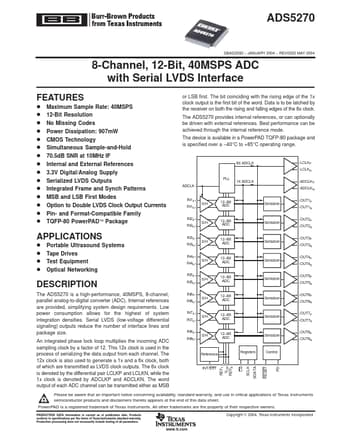

ADS5270 Datasheet Preview — Preview of ADS5270 PDF

Datasheet Details

Part number:

ADS5270

Manufacturer:

Burr-Brown Corporation

File Size:

439.72 KB

Description:

8-channel 12-bit 40msps adc.
