ADS5273 Datasheet, Converters, Texas Instruments

ADS5273 Features

• Converters 1
• 23 Maximum Sample Rate: 70MSPS
• 12-Bit Resolution
• No Missing Codes
• Total Power Dissipation: Internal Reference: 1W External Reference: 937mW

PDF File Details

Part number:

ADS5273

Manufacturer:

Texas Instruments ↗

File Size:

780.12kb

Download:

📄 Datasheet

Description:

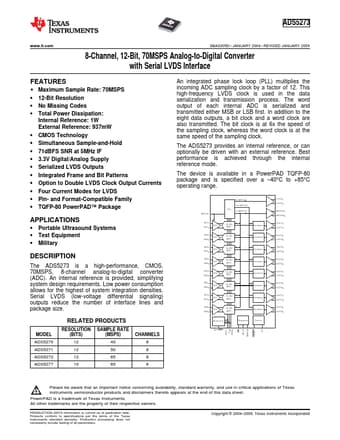

Analog-to-digital converters. The ADS5273 is a high-performance, CMOS, 70MSPS, 8-channel analog-to-digital converter (ADC). An internal reference is provided, simp

ADS5273 Application

• Applications
• Portable Ultrasound Systems
• Test Equipment
• Military DESCRIPTION The ADS5273 is a high-performance, CMOS,
