ADS5237

Analog-to-Digital Converter

ADS5237 Features

* 1

* 2 Single +3.3V Supply

* High SNR: 61.7dBFS at fIN = 5MHz

* Total Power Dissipation: Internal Reference: 366mW External Reference: 330mW

* Internal or External Reference

* Low DNL: ±0.1LSB

* Flexible Input Range: 1.5VPP to 2VPP

* TQFP-64 Pack

ADS5237 General Description

The ADS5237 is a dual, high-speed, high dynamic range, 10-bit, pipelined analog-to-digital converter (ADC). This device includes a high-bandwidth sample-and-hold amplifier that gives excellent spurious performance up to and beyond the Nyquist rate. The differential nature of the sample-and-hold ampl.

ADS5237 Datasheet (1.19 MB)

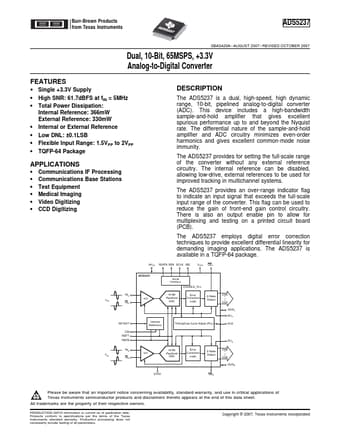

Preview of ADS5237 PDF

Datasheet Details

Part number:

ADS5237

Manufacturer:

Burr-Brown

File Size:

1.19 MB

Description:

Analog-to-digital converter.
BurrĆBrown Products from Texas Instruments ADS5237 SBAS420A

* AUGUST 2007

* REVISED OCTOBER 2007 Dual, 10-Bit, 65MSPS, +3.3V Analog-.
