ADS5242, ADS5242_Burr - 65MSPS Analog-to-Digital Converter

ADS5242 Description

BurrĆBrown Products from Texas Instruments ADS5242 SBAS330C * OCTOBER 2004 * REVISED OCTOBER 2005 4-Channel, 12-Bit, 65MSPS Analog-t.
The ADS5242 is a high-performance, 65MSPS, 4-channel analog-to-digital converter (ADC).

ADS5242 Features

* Maximum Sample Rate: 65MSPS
* 12-Bit Resolution
* No Missing Codes
* Total Power Dissipation Internal Reference: 660mW External Reference: 594mW
* CMOS Technology
* Simultaneous Sample-and-Hold
* 70.8dBFS SNR at 10MHz IF
* 3.3V Digita

ADS5242 Applications

* Portable Ultrasound Systems
* Tape Drives
* Test Equipment
* Optical Networking

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ADS5242, ADS5242_Burr. Please refer to the document for exact specifications by model.

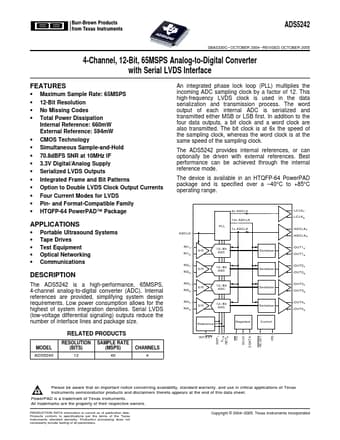

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ADS5242, ADS5242_Burr
Manufacturer
Burr-Brown Corporation
File Size
1.53 MB
Datasheet
ADS5242_Burr-BrownCorporation.pdf
Description
65MSPS Analog-to-Digital Converter
Note
This datasheet PDF includes multiple part numbers: ADS5242, ADS5242_Burr.
Please refer to the document for exact specifications by model.
