ADS5277

Analog-to-Digital Converters

ADS5277 Features

* 1

* 23 Maximum Sample Rate: 65MSPS

* 10-Bit Resolution

* No Missing Codes

* Total Power Dissipation: Internal Reference: 911mW External Reference: 845mW

* CMOS Technology

* Simultaneous Sample-and-Hold

* 61.7dBFS SNR at 5MHz IF

* 3.3V Di

ADS5277 General Description

The ADS5277 is a high-performance, CMOS, 65MSPS, 8-channel analog-to-digital converter (ADC). Internal references are provided, simplifying system design requirements. Low power consumption allows for the highest of system integration densities. Serial LVDS (low-voltage differential signaling) outpu.

ADS5277 Datasheet (1.22 MB)

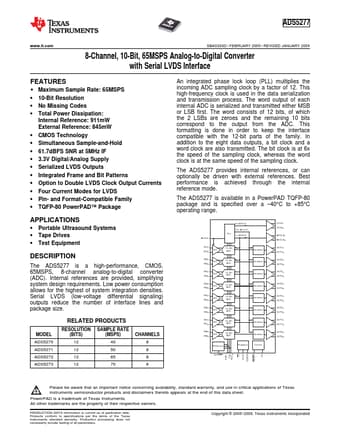

Preview of ADS5277 PDF

Datasheet Details

Part number:

ADS5277

Manufacturer:

Texas Instruments ↗

File Size:

1.22 MB

Description:

Analog-to-digital converters.
ADS5277 www.ti.com SBAS333D

* FEBRUARY 2005

* REVISED JANUARY 2009 8-Channel, 10-Bit, 65MSPS Analog-to-Digital Converter with Serial .
