ADS5232

Analog-to-Digital Converter

ADS5232 Features

* Single +3.3V Supply

* High SNR: 70.7dBFS at fIN = 5MHz

* Total Power Dissipation: Internal Reference: 371mW External Reference: 335mW

* Internal or External Reference

* Low DNL: ±0.3LSB

* Flexible Input Range: 1.5VPP to 2VPP

* TQFP-64 Package

ADS5232 General Description

The ADS5232 is a dual, high-speed, high dynamic range, 12-bit pipelined analog-to-digital converter (ADC). This converter includes a high-bandwidth sample-and-hold amplifier that gives excellent spurious performance up to and beyond the Nyquist rate. The differential nature of the sample-and-hold am.

ADS5232 Datasheet (829.36 KB)

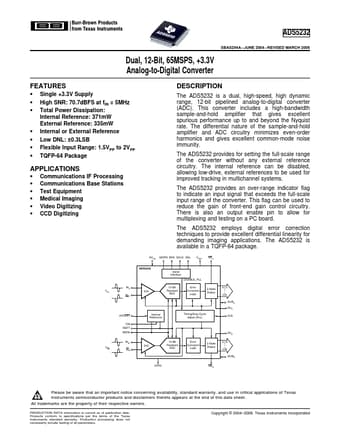

Preview of ADS5232 PDF

Datasheet Details

Part number:

ADS5232

Manufacturer:

Burr-Brown

File Size:

829.36 KB

Description:

Analog-to-digital converter.
BurrĆBrown Products from Texas Instruments ADS5232 SBAS294A

* JUNE 2004

* REVISED MARCH 2006 Dual, 12-Bit, 65MSPS, +3.3V Analog-to-D.
