ADS5272

Analog-to-Digital Converters

ADS5272 Features

* 1

* 23 Maximum Sample Rate: 65MSPS

* 12-Bit Resolution

* No Missing Codes

* Total Power Dissipation: Internal Reference: 983mW External Reference: 917mW

* CMOS Technology

* Simultaneous Sample-and-Hold

* 71.1dBFS SNR at 5MHz IF

* 3.3V Di

ADS5272 General Description

The ADS5272 is a high-performance, 65MSPS, 8-channel analog-to-digital converter (ADC). Internal references are provided, simplifying system design requirements. Low power consumption allows for the highest of system integration densities. Serial LVDS (low-voltage differential signaling) outputs red.

ADS5272 Datasheet (1.21 MB)

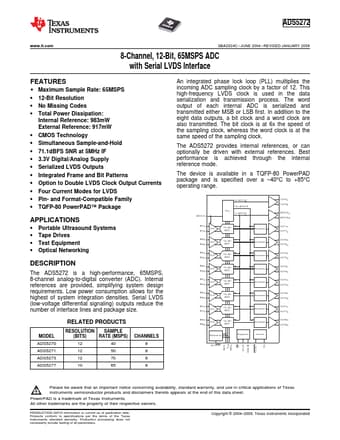

Preview of ADS5272 PDF

Datasheet Details

Part number:

ADS5272

Manufacturer:

Texas Instruments ↗

File Size:

1.21 MB

Description:

Analog-to-digital converters.
