CM6646X1, CM6646X1-C - USB 2.0 High Speed Audio Codec

C-Media

📥 Download Datasheet

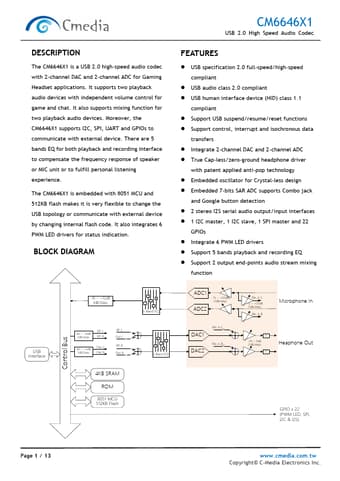

CM6646X1 Datasheet Preview — This datasheet PDF includes multiple part numbers: CM6646X1, CM6646X1-C. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CM6646X1, CM6646X1-C
Manufacturer	C-Media
File Size	1.07 MB
Description	USB 2.0 High Speed Audio Codec
Datasheet	CM6646X1-C-Media.pdf
Note	This datasheet PDF includes multiple part numbers: CM6646X1, CM6646X1-C. Please refer to the document for exact specifications by model.

CM6646X1 Product details

Description

The CM6646X1 is a USB 2.0 high-speed audio codec with 2-channel DAC and 2-channel ADC for Gaming Headset applications.

Features

USB specification 2.0 full-speed/high-speed compliant.
USB audio class 2.0 compliant.
USB human interface device (HID) class 1.1 compliant.
Support USB suspend/resume/reset functions.
Support control, interrupt and isochronous data transfers.
Integrate 2-channel DAC and 2-channel ADC.
True Cap-less/zero-ground headphone driver with patent applied anti-pop technology.
Embedded oscillator for Crystal-less design.
Embedded 7-bits SAR ADC supports Combo.
