2SA933 Datasheet - CHINA BASE

2SA933 - PNP Silicon Epitaxial Planar Transistor

2SA933 PNP Silicon Epitaxial Planar Transistor for switching and AF amplifier applications.

The transistor is subdivided into three groups, O, Y and S, according to its DC current gain.

As complementary type the NPN transistor 2SC945 is recommended.

On special request, these transistors can be manufactured in different pin configurations.

Absolute Maximum Ratings (Ta = 25℃) Parameter Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Power Dissipation Juncti

2SA933-CHINABASE.pdf

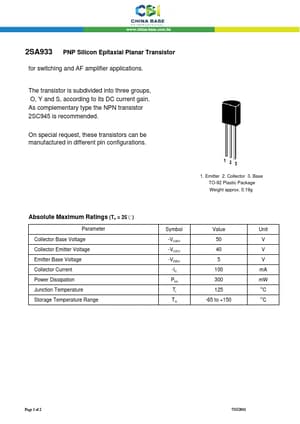

Preview of 2SA933 PDF
2SA933 Datasheet Preview Page 2

Datasheet Details

Part number:

2SA933

Manufacturer:

CHINA BASE

File Size:

118.98 KB

Description:

Pnp silicon epitaxial planar transistor.
