FX829 - Baseband Signal Processor

CML

📥 Download Datasheet

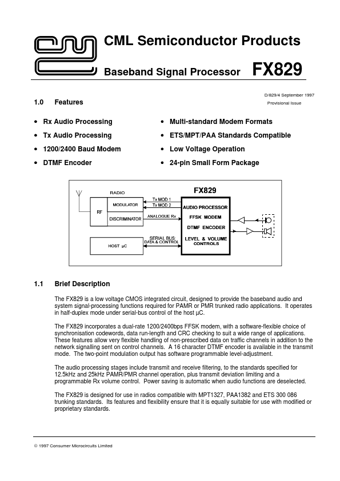

FX829 Datasheet Preview — Preview of FX829 PDF

Datasheet Details

Part number: FX829
Manufacturer: CML
File Size: 507.92 KB
Datasheet: FX829-CML.pdf
Description: Baseband Signal Processor

FX829 Product details

Description

The FX829 is a low voltage CMOS integrated circuit, designed to provide the baseband audio and system signal-processing functions required for PAMR or PMR trunked radio applications.

Features

Rx Audio Processing.
Tx Audio Processing.
1200/2400 Baud Modem.
DTMF Encoder D/829/4 September 1997 Provisional Issue.
Multi-standard Modem Formats.
ETS/MPT/PAA Standards Compatible.
Low Voltage Operation.
24-pin Small Form Package 1.1 Brief.
