MMA-005022-M4 Traveling Wave Amplifier

The MMA-005022-M4 is a broadband GaAs MMIC Traveling Wave Amplifier (TWA) with medium output power and high gain over full 30KHz to 50GHz frequency range. This amplifier is optimally designed for broadband applications requiring flat gain and group delay with excellent input and output matches over.

MMA-005022-M4 Features

* Frequency Range: 30 KHz

* 50 GHz ∗

* P1dB: +22 dBm

* Vout: 7V p-p @50Ω

* Gain: 13.5 dB

* Vdd =7 V

* Ids = 200 mA

* Input and Output Fully Matched to 50 Ω

* Surface Mount, RoHs Compliant QFN 4x4mm package ∗ NOTE: Performance d

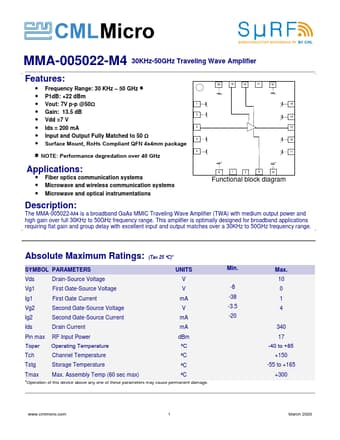

MMA-005022-M4-CML_removed.pdf
