MMA-243034D-M5 Datasheet, Amplifier, CML

MMA-243034D-M5 Features

  • Amplifier
  • Frequency Range: 24
      – 30 GHz
  • P1dB: 34 dBm
  • IM3 Level: -25 dBc @ Po = 27 dBm/tone
  • Gain: 23 dB
  • Vdd = 6V
  • Idsq =

PDF File Details

Part number:

MMA-243034D-M5

Manufacturer:

CML

File Size:

582.92kb

Download:

📄 Datasheet

Description:

2.5w mmic power amplifier. Functional Block Diagram Vd1 Vd2 Vd3 Vd4 1 2 GND 3 RF IN 4 GND 5 6 7 8 32 31 30 29 28 27 26 25 24 23 22 GND 21 RF OUT 20 GND 19

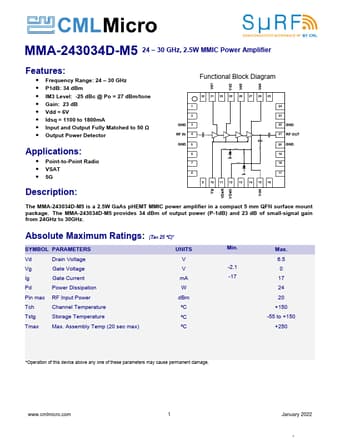

Datasheet Preview: MMA-243034D-M5 📥 Download PDF (582.92kb)
Page 2 of MMA-243034D-M5 Page 3 of MMA-243034D-M5

MMA-243034D-M5 Application

  • Applications
  • Point-to-Point Radio
  • VSAT
  • 5G Description: Functional Block Diagram Vd1 Vd2 Vd3 Vd4 1 2 GND 3 RF IN 4
