MMA-005022B

Traveling Wave Amplifier

MMA-005022B Features

* Frequency Range: 30KHz

* 50 GHz

* P1dB: +22 dBm

* Vout: 7V p-p @50Ω

* Gain: 15.5 dB

* Vdd =7 V

* Ids = 200 mA

* Input and Output Fully Matched to 50 Ω on chip Applications:

* Fiber optics communication systems

* Microwave and wireless communication syst

MMA-005022B General Description

The MMA-005022B is a broadband GaAs MMIC Traveling Wave Amplifier (TWA) with medium output power and high gain over full 30KHz to 50GHz frequency range. This amplifier is optimally designed for broadband applications requiring flat gain and group delay with excellent input and output matches over a.

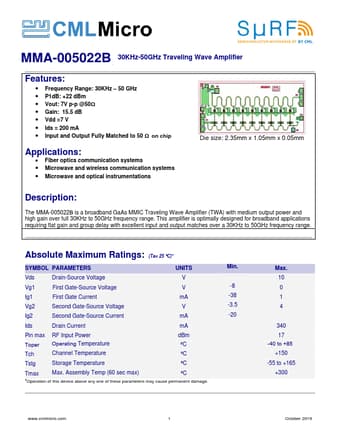

MMA-005022B Datasheet (894.61 KB)

Preview of MMA-005022B PDF

Datasheet Details

Part number:

MMA-005022B

Manufacturer:

CML

File Size:

894.61 KB

Description:

Traveling wave amplifier.
