MX014

Voice Band inverter

CML

MX014 Features

* CTCSS Compatible

* Fixed Frequency Inversion

* Low Power CMOS Voice Band inverter Applications

* Land Mobile Radio Systems

* Community Repeaters BALMOD DEEMP Out RX Buffer In TX Audio Feedback TX Audio In 6dB/Octave Pre-emphasis 10dB Gain Rx Path Path

MX014 General Description

An external 4MHz clock can be applied to this input. The clock circuit on chip has a resistor and capacitors so that only one external crystal is required. This is the inverted 4MHz clock output for use when a crystal oscillator is used, or as a buffer for driving other clocked devices. Push To Talk.

MX014 Datasheet (194.94 KB)

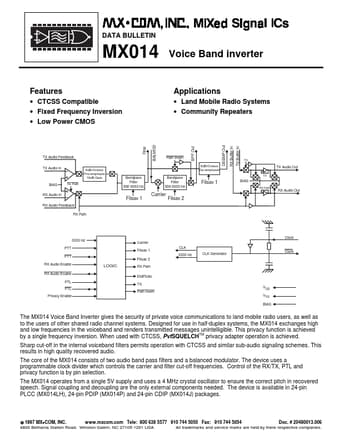

MX014 Datasheet Preview — Preview of MX014 PDF

Datasheet Details

Part number:

MX014

Manufacturer:

CML

File Size:

194.94 KB

Description:

Voice band inverter.
