MX019

Quad Digital Control Amplifier

CML

MX019 Features

* 4 Digitally Controlled Amplifiers 15 Gain/Attenuation Steps 3 Amplifiers ± 3dB Range in 0.43dB Steps 1 'Volume' Amplifier ±14dB Range in 2dB Steps 8-Bit Serial Data Control Output Mute Function SERIAL CLOCK INPUT SERIAL DATA INPUT 2 1 Quad Digital Control Amplifier APPLICATIONS Gain

MX019 General Description

4.1 Control Data and Timing 4.1.1 Data Loading 4.1.2 Timing Page 3 4 5 5 5 5 7 5. Application 6. Performance Specification 6.1 Electrical Performance 6.1.1 Absolute Maximum Ratings 6.1.2 Operating Limits 6.1.3 Operating Characteristics 8 8 8 8 8 9 6.2 Packaging MX-COM, Inc. reserves the right to.

MX019 Datasheet (177.32 KB)

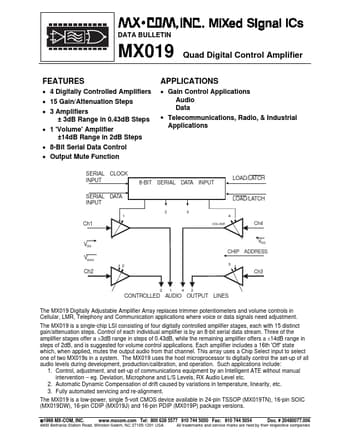

MX019 Datasheet Preview — Preview of MX019 PDF

Datasheet Details

Part number:

MX019

Manufacturer:

CML

File Size:

177.32 KB

Description:

Quad digital control amplifier.
