MX0103A - N-Channel Enhancement Mode Power MOSFET

MX0103A Description

N-Channel Enhancement Mode Power MOSFET MX0103A .
The MX0103A uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

MX0103A Features

* VDS=100V, ID=2.5A RDS(ON)(Typ. )=140mΩ @ VGS=10V
* High Power and current handing capability
* Lead free product is acquired

📥 Download Datasheet

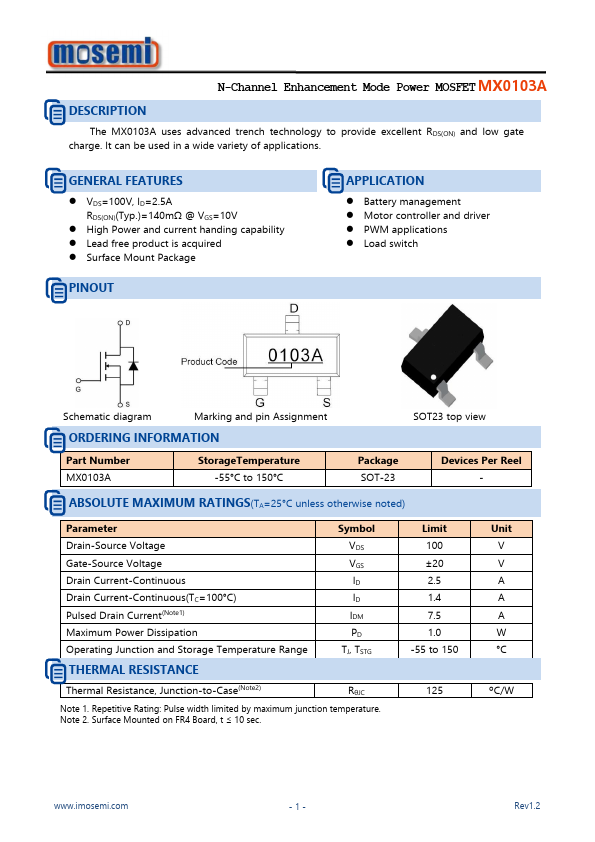

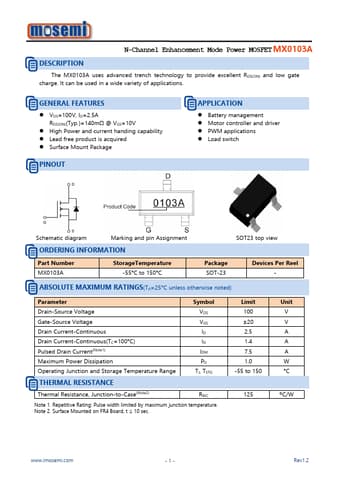

Preview of MX0103A PDF

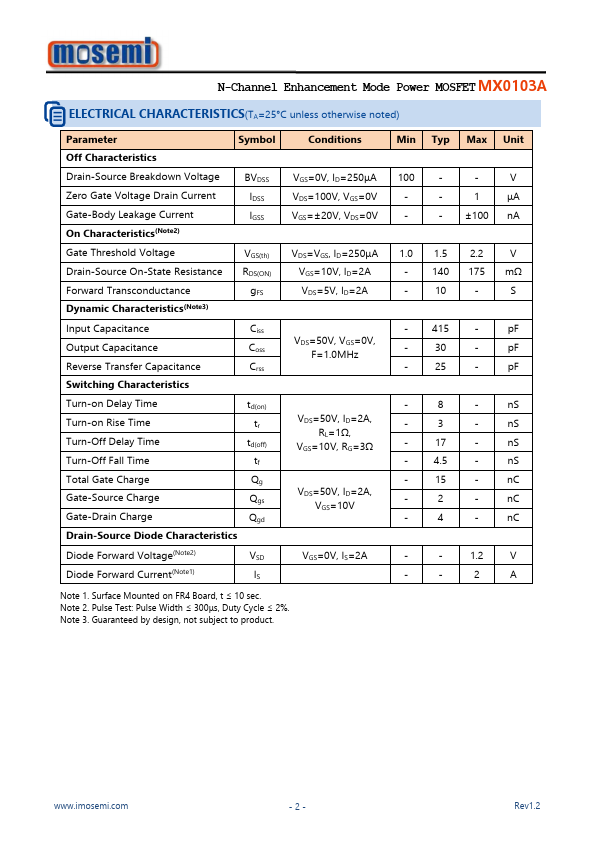

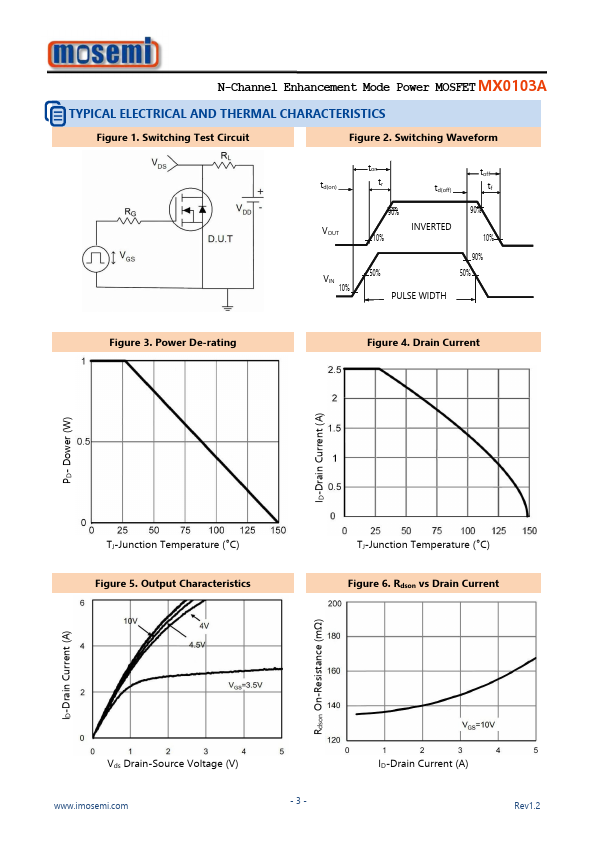

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MX0103A
Manufacturer
imosemi
File Size
661.32 KB
Datasheet
MX0103A-imosemi.pdf
Description
N-Channel Enhancement Mode Power MOSFET
