M106-A4-G1 Datasheet - CMOS Sensor

M106-A4-G1 Contact Image Sensor Module

The M106-A4-G1 compact image sensor module is a contact type image sensing module that is composed of a line of LED’s as a light source, a long Selfoc rod lens array, and 1728 pixels of the photo-detector array. Input and output electronic contact is via a seven - pin connector. The cross sectiona.

Contact Image Sensor (CIS) Module Product Name M106-A4-G1 Approval Notes CMOS Sensor Inc. 20045 Stevens Creek Blvd., Suite 1A Cupertino, CA., 95014 Tel: (408) 366-2898 Fax: (408) 366-2698 Approved Checked Designed Issued Oct 7, 2008 Revision no. V1.0 All specifications of this device are subject to change without notice. 20045 Stevens Creek Blvd., Suite 1A, Cupertino, CA., 95014 Tel: (408) 366-2898, Fax: (408) 366-2698 Revision control sheet Revision No. Date Item of change and c.

M106-A4-G1 Features

* 1728 x 1 image sensing elements

* 8 dots per millimeter (dpm) resolution

* 216 mm scanning length

* 15 mm x 18 mm x 232 mm compact size

* 5 ms/line scanning speed

* Yellow green LED light source

* high MTF

* light weight

* lo

M106-A4-G1 Datasheet (102.03 KB)

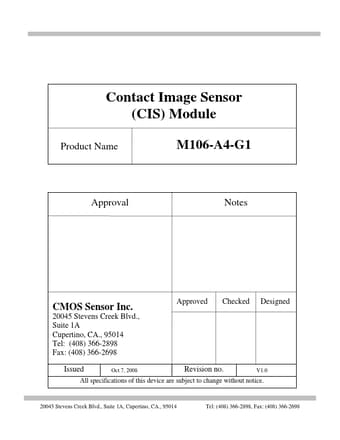

M106-A4-G1 Datasheet Preview — Preview of M106-A4-G1 PDF

Datasheet Details

Part number:

M106-A4-G1

Manufacturer:

CMOS Sensor

File Size:

102.03 KB

Description:

Contact image sensor module.
